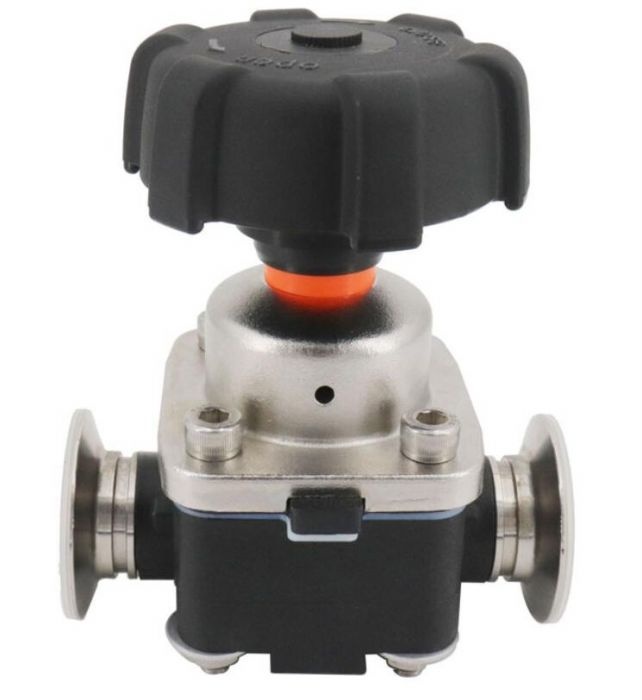

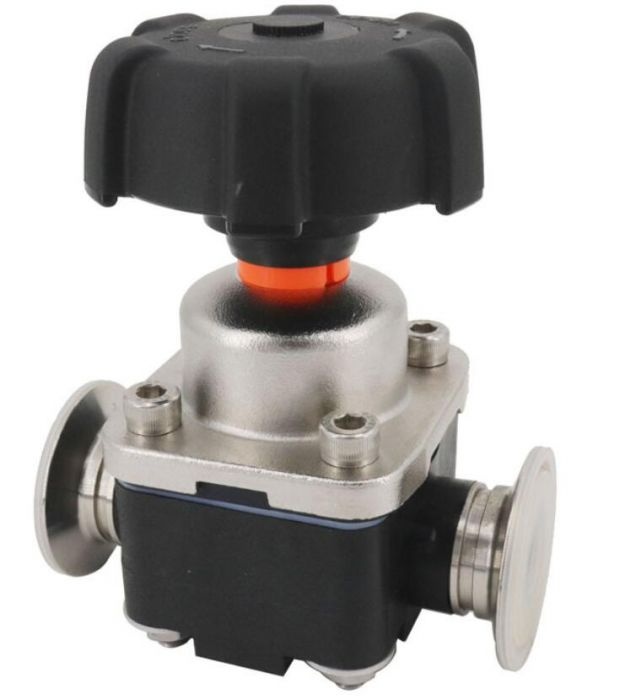

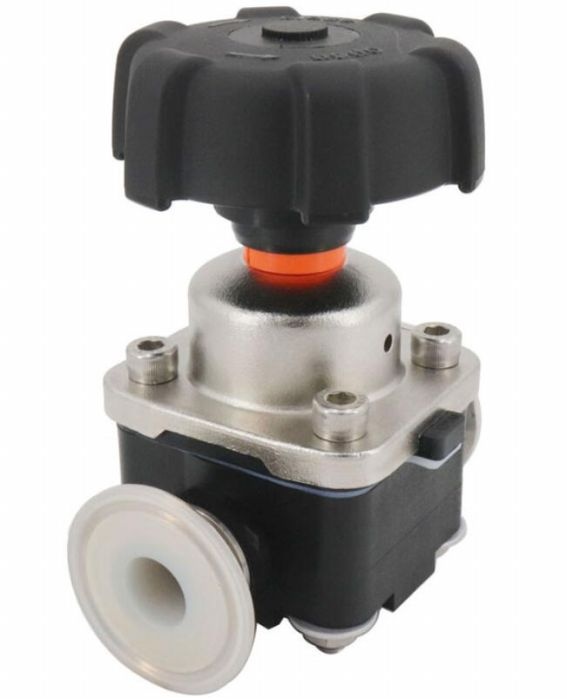

 Sanitary fluorine lined diaphragm valve

Nominal diameter: dn15-dn100

Nominal pressure: 1.6Mpa

Service temperature: - 40 ℃ - 140 ℃

Applicable medium: water, oil, acid and alkali

Valve body material: 316L

Main lining materials: PFA, PTFE

Features of sanitary fluorine lined diaphragm valve:

1. It can transport strong chemical corrosive fluid, high temperature resistance, vacuum resistance, high mechanical strength, excellent chemical stability and dielectric properties.

2. The ball valve with PFA or PTFE lining layer has chemical stability and can be applied to any strong corrosive medium except "molten alkali metal and element fluorine".

3. The structure is compact and reasonable, the cavity space of the valve body is small, and the medium retention is reduced. In addition, the special molding process makes the sealing surface dense, and the combination of annular PTFE packing makes the fluorine lined ball valve achieve zero leakage.

5. The fluid resistance is small, and its resistance coefficient is equal to that of the same length of pipe.
