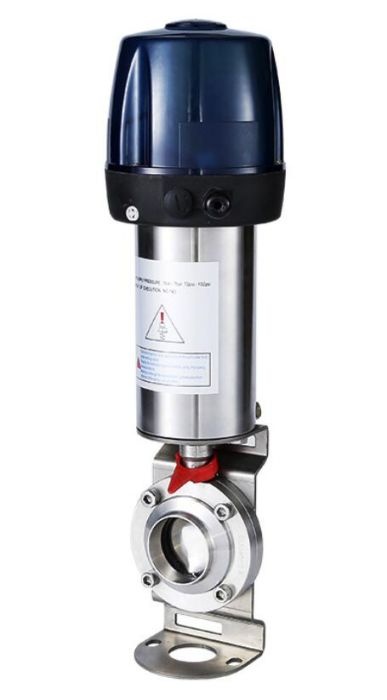

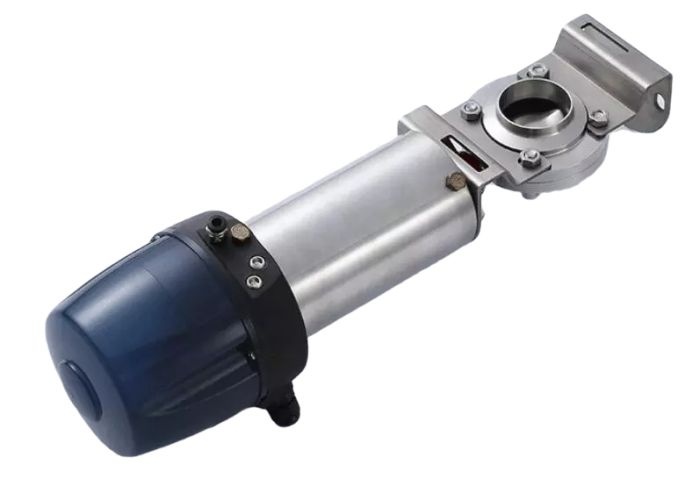

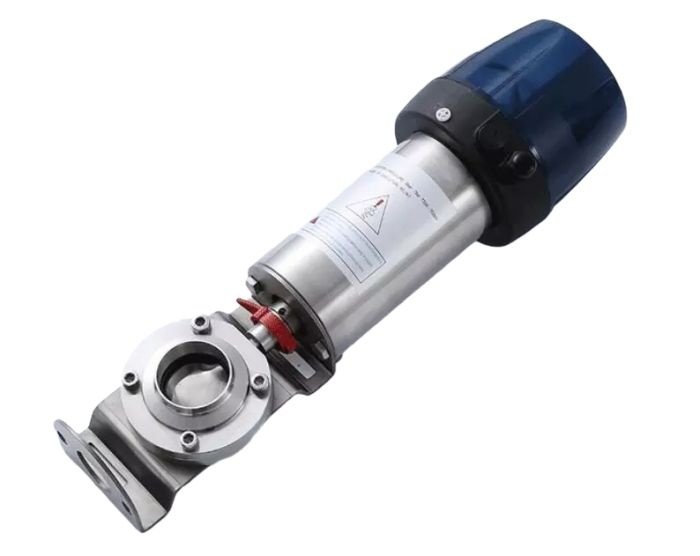

sanitary C-TOP butterfly valve

Product No.：2021430192011
Online Inquiry

Application of sanitary butterfly valve

Sanitary, automatic or manual butterfly valves are widely used in beer, beverage, dairy, juice, pharmaceutical, bioengineering and other fields.

working principle

The sanitary butterfly valve is divided into manual type, pneumatic type, intelligent pneumatic type and electric type;

Manual butterfly valve has round pull handle, square pull handle, 12 positioning plastic handle and 12 positioning stainless steel handle. The butterfly valve can be equipped with stainless steel pneumatic actuator, aluminum pneumatic actuator, intelligent pneumatic actuator and electric actuator.

The range of opening and closing is 0 ~ 90 degrees, which can be fixed at the position of every 15 degrees, with adjustable, fast opening and closing, and convenient operation.

The rubber sealing ring and valve plate of butterfly valve are imported parts, which ensure the service performance and service life of butterfly valve.

Technology options

Specification: DN 15-dn 250, 1 "- 10"

Connection type: welding clamp, threaded flange, etc

Standards: ISO, DIN, IDF, SMS, 3a, RJT, etc

Material: 304 / 316L

Product Description: good sealing and long service life

Quality: the products are treated with high-grade polishing equipment inside and outside to meet the surface precision requirements

Sealing ring: MVQ, EPDM, NBR, FPM according to fda177.2600

Manual operation: multi position handle, pull rod handle

Pneumatic operation: normally open and normally closed air / pneumatic

Electric operation: intelligent control switch type

Working pressure: 1.0MPa
